Diffraction project datasets WT4514A_3ucg

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: I 2 3
Download all images (4.4 GB)

PDB website for 3UCG
PDB validation report for 3UCG

doi:10.18430/M33UCG

Project details

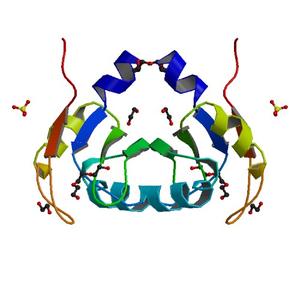

Title Crystal structure of a RNA binding domain of polyadenylate-binding protein (PABPN1) from Homo sapiens at 1.95 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG), Partnership for T-Cell Biology
Bioentity None
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 92.68 x 92.68 x 92.68
Unit cell angles [°] 90.0, 90.0, 90.0

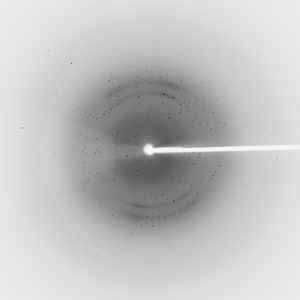

Dataset 169248_1_E1_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 149.0
Wavelength [Å] 0.97925
Experiment Date 2011-07-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

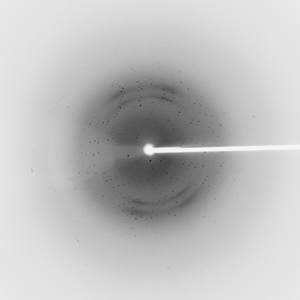

Dataset 169248_1_E2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 149.0
Wavelength [Å] 0.91837
Experiment Date 2011-07-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

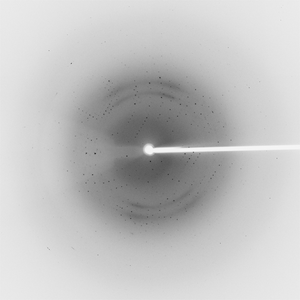

Dataset 169248_2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 149.0
Wavelength [Å] 0.97894
Experiment Date 2011-07-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
