Diffraction project datasets YOR209C_1vlp
- Method: MAD
- Resolution: 1.75 Å
- Space group: P 1
PDB website for 1VLP
doi:10.18430/M31VLP
Project details

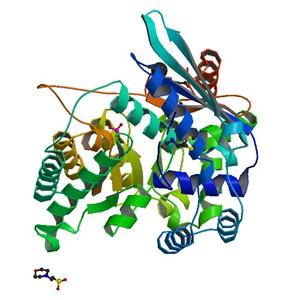

| Title | Crystal structure of a putative nicotinate phosphoribosyltransferase (yor209c, npt1) from saccharomyces cerevisiae at 1.75 A resolution |
| Authors | Chappie, J.S., Canaves, J.M., Han, G.W., Rife, C.L., Xu, Q., Stevens, R.C. |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 54.41 x 83.10 x 107.24 |
| Unit cell angles [°] | 97.4, 95.7, 98.0 |

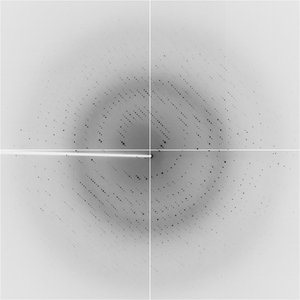

Dataset T2399_1_###.img details
| Number of frames | 270 (1 - 270) |
| Distance [mm] | 175.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 252.0 |
| Wavelength [Å] | 0.96860 |
| Experiment Date | 2004-01-09 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

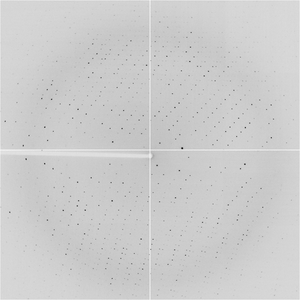

Dataset T2399_2_###.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.50 |
| Phi [°] | 162.0 |
| Wavelength [Å] | 0.96860 |
| Experiment Date | 2004-01-09 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
