Diffraction project datasets apc105002_4J01
- Method: Molecular Replacement
- Resolution: 3.25 Å
- Space group: P 1 21 1
PDB website for 4J01
PDB validation report for 4J01
doi:10.18430/M34J01
Project details

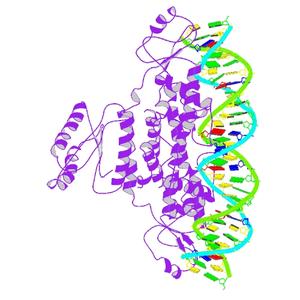

| Title | Crystal Structure of Fischerella Transcription Factor HetR complexed with 29mer DNA target |
| Authors | Kim, Y., Ye, Z., Joachimiak, G., Videau, P., Young, J., Hurd, K., Callahan, S.M., Gornicki, P., Zhao, J., Haselkorn, R., Joachimiak, A. |
| Bioentity | None |
| R / Rfree | 0.24 / 0.28 |
| Unit cell edges [Å] | 78.16 x 182.18 x 78.37 |
| Unit cell angles [°] | 90.0, 91.4, 90.0 |

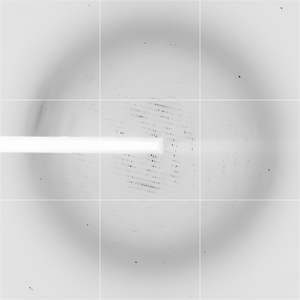

Dataset 29pgc-pc-a11g.####.img details
| Number of frames | 143 (1 - 143) |
| Distance [mm] | 420.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -100.0 |
| Wavelength [Å] | 0.97929 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
