Diffraction project datasets nnnn_9hg1
- Resolution: 2.3 Å
- Space group: P 1
Uniprot website for A0QYE8
PDB website for 9HG1
PDB validation report for 9HG1
doi:10.18430/M39HG1
Project details
| Title | Crystal structure of M. smegmatis GMP reductase in complex with GMP and ATP. |
| Authors | Dolezal, M., Klima, M., Pichova, I. |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 112.57 x 113.60 x 178.06 |
| Unit cell angles [°] | 82.7, 77.2, 66.7 |

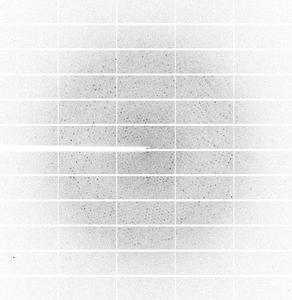

Dataset 9HG1_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 238.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 91.35 |
| Kappa / Chi [°] | 0.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 1.77120 |
| Equipment | BL14.3 at BESSY II (Bessy II) |

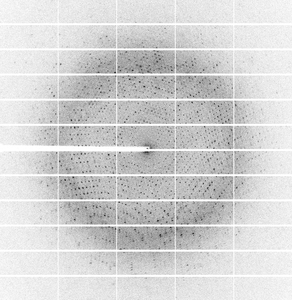

Dataset 9HG1_2_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 238.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 91.69 |
| Kappa / Chi [°] | 90.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 1.77120 |
| Equipment | BL14.3 at BESSY II (Bessy II) |
