Diffraction project datasets rna_dna_hybrid_37op_37OP
- Resolution: 3.66 Å
- Space group: I 1 2 1
Uniprot website for P03856
PDB website for 37OP
PDB validation report for 37OP
doi:10.18430/M337OP
Project details
| Title | Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing RNA:DNA hybrid insert sequence GAAGAGAAGCAC |
| Authors | Slaughter, C.K., Shields, E.T., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.26 / 0.27 |
| Unit cell edges [Å] | 73.90 x 132.92 x 130.77 |
| Unit cell angles [°] | 90.0, 95.4, 90.0 |

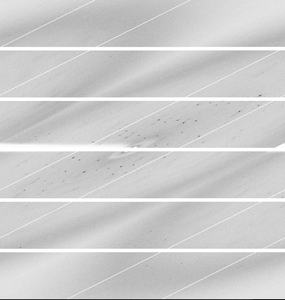

Dataset run_5_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 180.01 |
| Wavelength [Å] | 1.00000 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
