Diffraction project datasets sbp_apo_12td
- Resolution: 1.99 Å
- Space group: C 2 2 21
PDB website for 12TD
PDB validation report for 12TD
doi:10.18430/M312TD
Project details
| Title | Structure of de novo designed salen-binding enzyme |
| Authors | Bakanas, I., Horst, M., DeGrado, W.F. |
| R / Rfree | 0.21 / 0.26 |
| Unit cell edges [Å] | 76.79 x 86.45 x 81.55 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

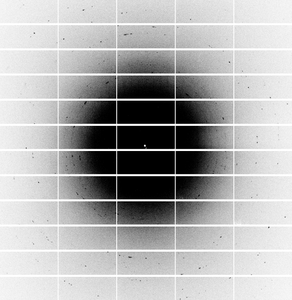

Dataset dgl00310_1_#####.cbf details
| Number of frames | 2571 (1 - 2571) |
| Distance [mm] | 175.4 |
| Oscillation width [°] | 0.14 |
| Omega [°] | 210.0 |
| Phi [°] | 210.0 |
| Wavelength [Å] | 1.11583 |
| Experiment Date | 2025-10-13 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |
