Diffraction project datasets sbp_holo_12xx
- Resolution: 1.66 Å
- Space group: C 2 2 21
PDB website for 12XX
PDB validation report for 12XX
doi:10.18430/M312XX
Project details
| Title | Structure of de novo designed salen-binding enzyme with salen bound |
| Authors | Bakanas, I., Horst, M., DeGrado, W.F. |
| R / Rfree | 0.23 / 0.26 |
| Unit cell edges [Å] | 77.26 x 86.87 x 84.35 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

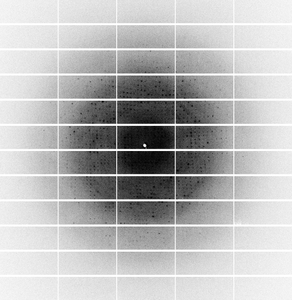

Dataset dgl00305_1_#####.cbf details
| Number of frames | 2400 (1 - 2400) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.15 |
| Omega [°] | 141.0 |
| Phi [°] | 141.0 |
| Wavelength [Å] | 1.11583 |
| Experiment Date | 2025-10-13 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

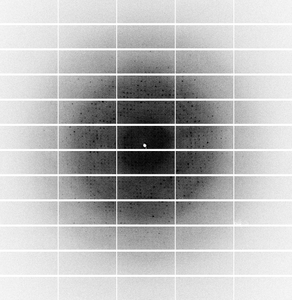

Dataset dgl00305_2_#####.cbf details
| Number of frames | 2400 (1 - 2400) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.15 |
| Omega [°] | 141.0 |
| Phi [°] | 141.0 |
| Wavelength [Å] | 1.11583 |
| Experiment Date | 2025-10-13 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |
